The Q-Line with BHS180 is redefining performance in digital die-less cutting. This innovative system solution for producing packaging and displays takes highly automated, industrial manufacturing to the next level.
Ultimate performance and efficiency – the innovative, integrated machine concept of the new Q-Line with BHS180 makes all the difference.
CONCRETE
CONCRETE
PERFORMANCE
PERFORMANCE
Q-Line-BHS180-sideview-wo-cage

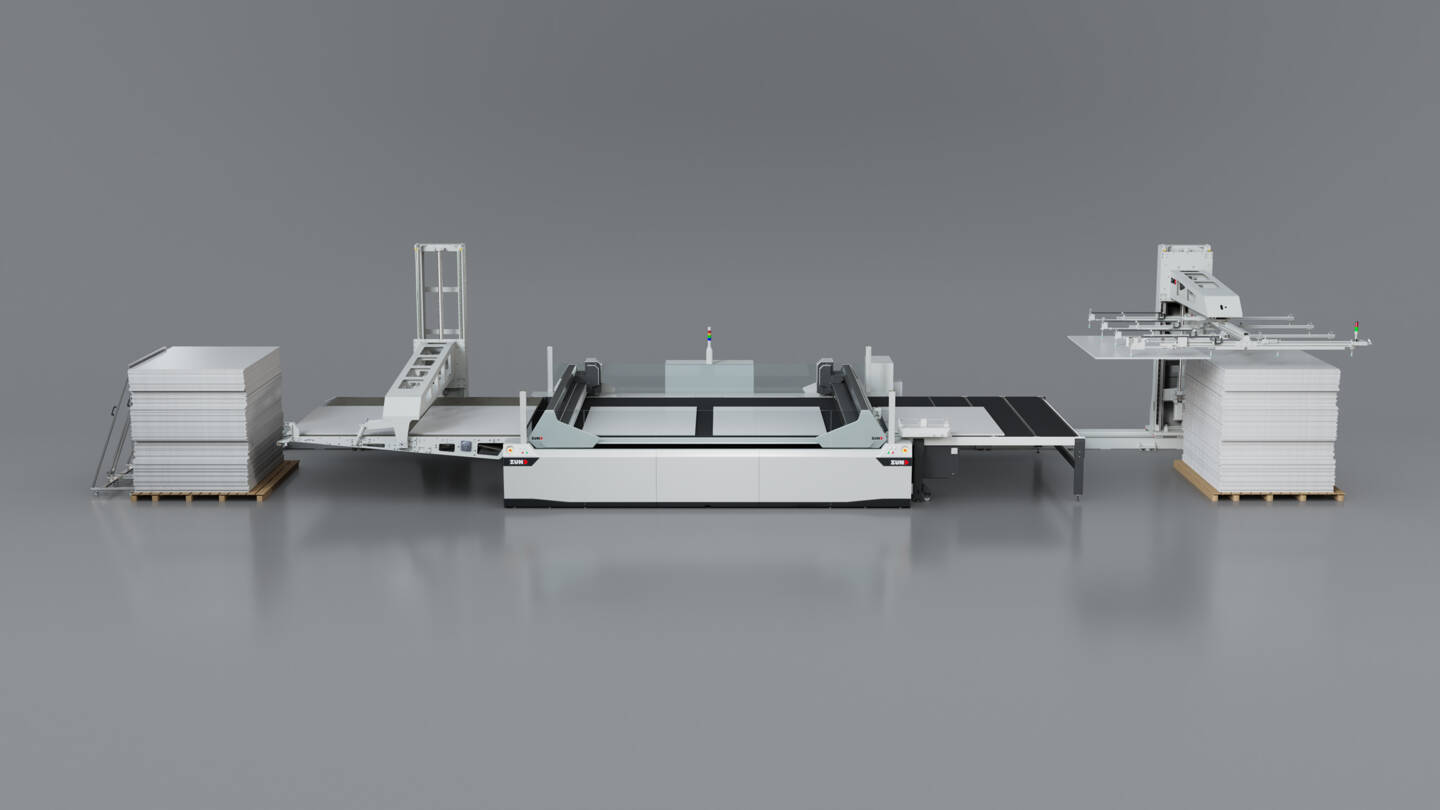

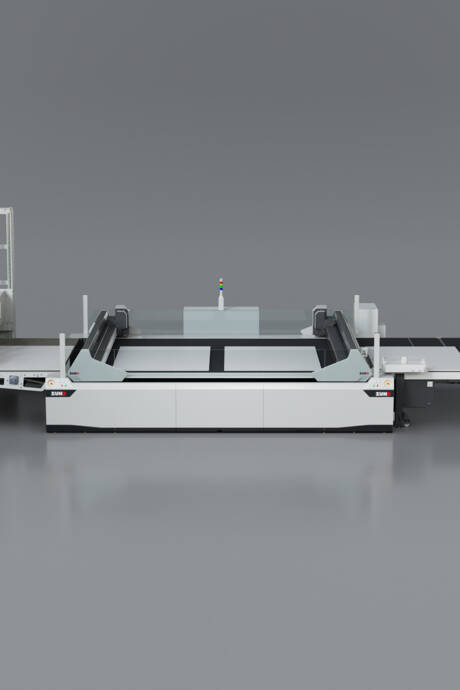

The Q-Line with BHS180 is a new generation of extremely powerful cutting systems from Zünd. Its unique performance characteristics are based on a machine concept that has been completely redesigned from the ground up.

Q-Line-BHS180-wo-cage
AUTOMATION
AUTOMATION
DONE THE SMART WAY
DONE THE SMART WAY
Stapelhoehe
Stapelhoehe

With its expertise in intelligent automation, Zünd is always striving to maximize our customers' production efficiencies and competitive advantages. We are constantly focused on automating material handling in ways that benefit you the most. So let's talk about how the Q-Line with BHS180 can help you further increase these advantages.

MATERIAL HANDLING
MATERIAL HANDLING
ON AN INDUSTRIAL SCALE
ON AN INDUSTRIAL SCALE
Feeder

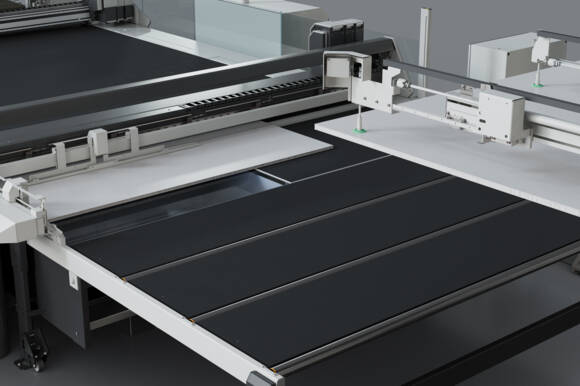

The Q-Line with BHS180 board handling gives you everything you need for an efficient, uninterrupted flow of materials in an industrial-level finishing process for displays and printed packaging. This includes sophisticated and fully automated material feeding and stacking, as well as a range of registration options with the new UNDERCAM system— and all of it on the fly. It makes finishing more productive, increases throughput, reduces operator intervention to a minimum, and practically eliminates any and all downtime.

Request more information
Undercam
Speed
gauge-dashboard
2,8 m/s
The brand-new machine concept behind the Q-Line with BHS180 is redefining performance. New machine components such as the solid concrete substructure, the new linear drive system, and the carbon-fiber-reinforced plastic used for the beams, all combine to provide impressive speeds of up to 2.8 m/s.
Geschwindigkeit
Acceleration
synchronize-arrows-square
2,1g
The astounding level of performance is reflected in different ways—among other things, in the impressive acceleration of up to 2.1g, which enables extremely high processing speeds and significantly shorter cycle times for each job.
Modules-side
Pressure
shipment-weight-kg
up to 500 N of pressure
Q-Line cutters are a force to be reckoned with. Based on the latest technology, the new tool modules are capable of exerting a creasing pressure of up to 500 N.
Moduls-frontal
working width from
area
1,8 to 3,2 m
The new Q-Line cutters with BHS180 are available in three different sizes. Choose the machine size best suited to meet your specific production requirements.
Bogen
Q-Line-BHS180-wo-cage
CFK

Beams made from CFR plastic

The beams are made of carbon fiber-reinforced polymer, which makes them very lightweight and exceedingly strong.

Stapelhoehe

Stack height

The stack height of 1.8 m allows much longer uninterrupted operation.

Undercam

UNDERCAM

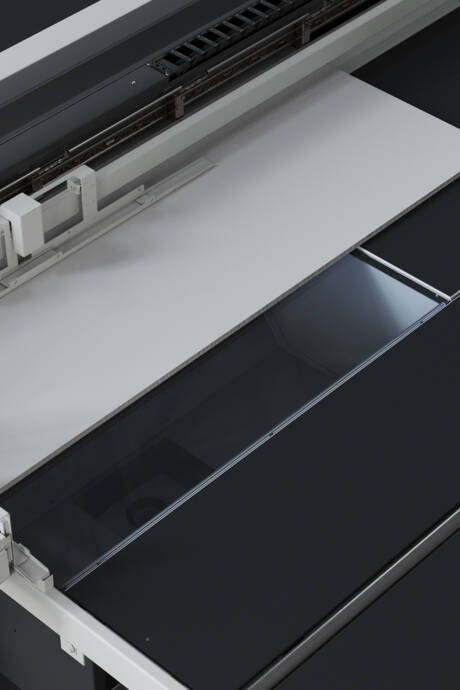

The UNDERCAM captures the image, identifies any distortions in the print, and ensures the cut and print are perfectly matched.

Bedieneinheit-quer

Workstation

The new workstation comes with a touchscreen for even more intuitive cutter control.

Drive system

The linear drive system takes productivity to a new level. It is extremely reliable, wear free, and energy efficient.

Unterbau

Substructure

The new substructure of the Q-Line is made from highly stable concrete. It can handle any load level and, even at extremely high speeds, ensures exceptionally smooth operation and maximum cutting accuracy.

Stacker

Off-load unit

The new design of the off-load unit allows easy and precise stacking of bridge-free, cut board/sheet material.

Moduls-frontal

Modules

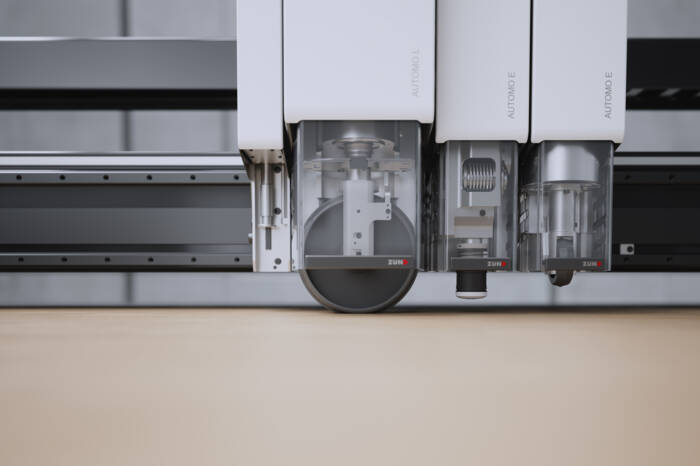

The new AUTOMO E and AUTOMO L modules are compatible with any tool.  AUTOMO E excels particularly in speed, while AUTOMO L is all about force.

Toolchanger-frontal

Tool changer

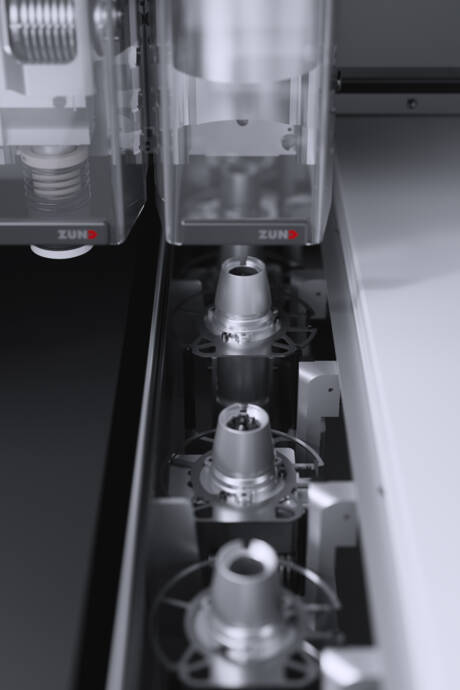

The new tool magazines each have seven tool stations. An integrated scanner automatically identifies which tools are in the magazine.

AUTOMATED TOOL MANAGEMENT
AUTOMATED TOOL MANAGEMENT
Toolchanger
Toolchanger

Cutting, creasing, and perforating at the highest level. No matter how varied user requirements may be, the Q-Line with BHS180 has the range of tools to get the job done.

  • AUTOMO acts as a carrier for many different tools.
  • UNITO the universal tool for drag-knife cutting an extremely wide range of materials with centered or off-centered blades.
  • DRAWTOthe tool for marking and drawing on almost any material.
  • ELOSTO for electric oscillating cutting of materials up to 55 mm thick.
  • CRETO a creasing tool available in several different designs depending on the diameter of the crease wheel.
  • PERTO the tool for creating precisely perforated lines.
INNOVATIVE MATERIALS
INNOVATIVE MATERIALS
CFK
CFK

The new Q-Line with BHS180 is not only extraordinarily fast, it is also exceptionally powerful. Zünd is taking advantage of all the benefits of the latest innovations in available materials. The machine substructure is made from concrete that offers exceptional stability, and the beams are made entirely from carbon fiber-reinforced plastic. In short, the new Q-Line with BHS180 from Zünd has once again redefined digital cutting performance.
